Distribution Boxes

  1. Home
  3. Our Products
  5. Distribution Boxes
MSEDCL Approved

63kVA/100kVA Rural Distribution Box (DMC Kitkat)

"Robust, tamper-proof rural power distribution solution designed for long life, zero complexity, and field-friendly maintenance."

Basic System Details

ParameterDetail
System Voltage415 V, 3-Phase, 4-Wire
Frequency50 Hz
NeutralSolidly earthed
Suitable Transformer63kVA/100 kVA DT
Incomer ArrangementTriple pole Isolator / Switch Disconnector
Outgoing ProtectionKit-Kat Fuse Outgoing
Outgoing CircuitsTypically 4–6 feeders (rural)
Busbar SystemAluminium or Copper (as per tender)
EnclosureDMC/SMC weatherproof enclosure
Mechanical ConstructionPole mounted near transformer & Tamper-proof arrangement

Application

  • For LT distribution of 3-phase 415 V supply from 63/100 kVA transformer
  • Installed on pole near DTC (Distribution Transformer Centre)
  • Feeds multiple rural outgoing lines
  • Designed to prevent theft, tapping, weather damage

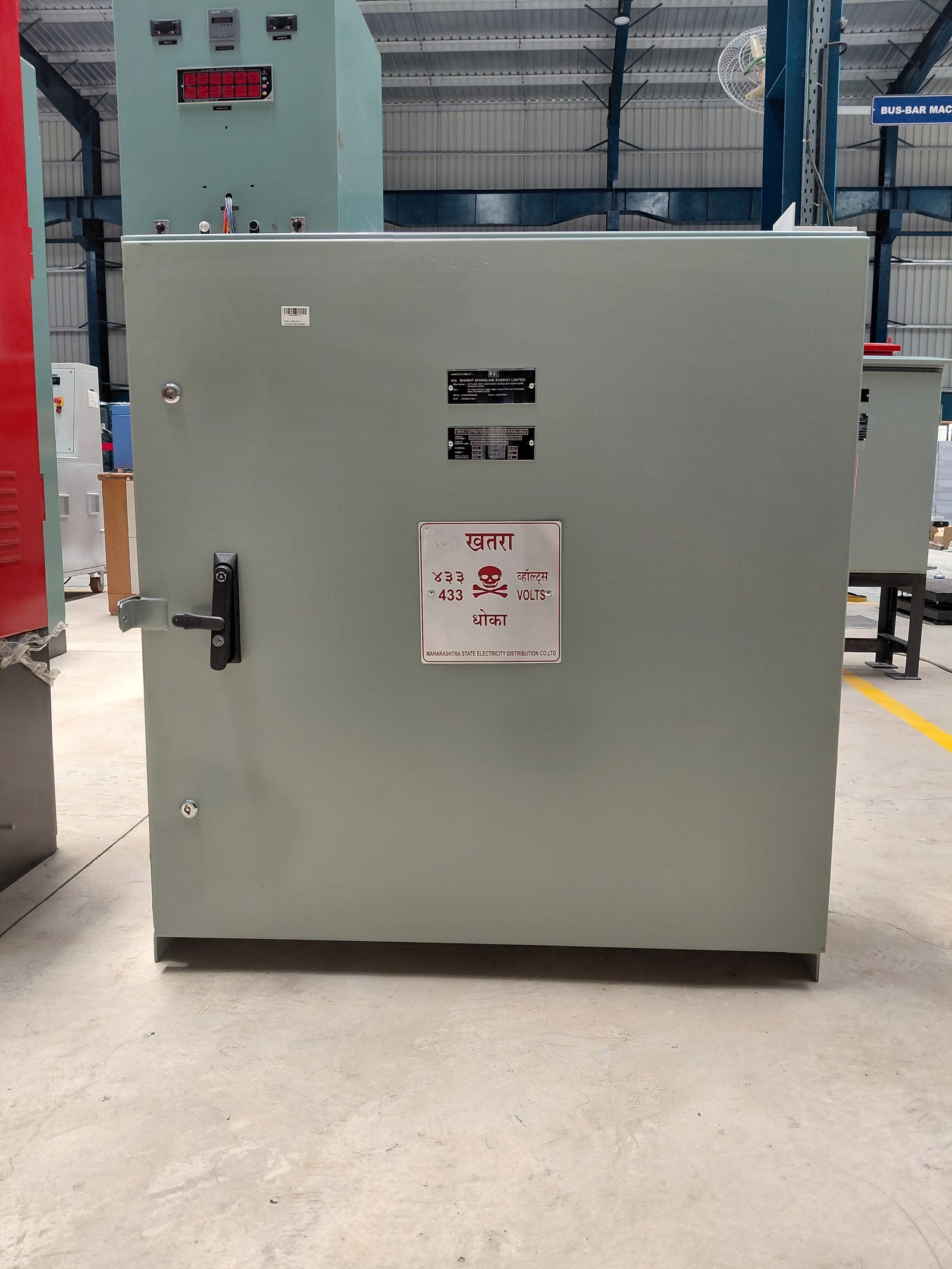

BSL Energy 63/100kVA Rural Distribution Box DMC Kitkat
MSEDCL Approved

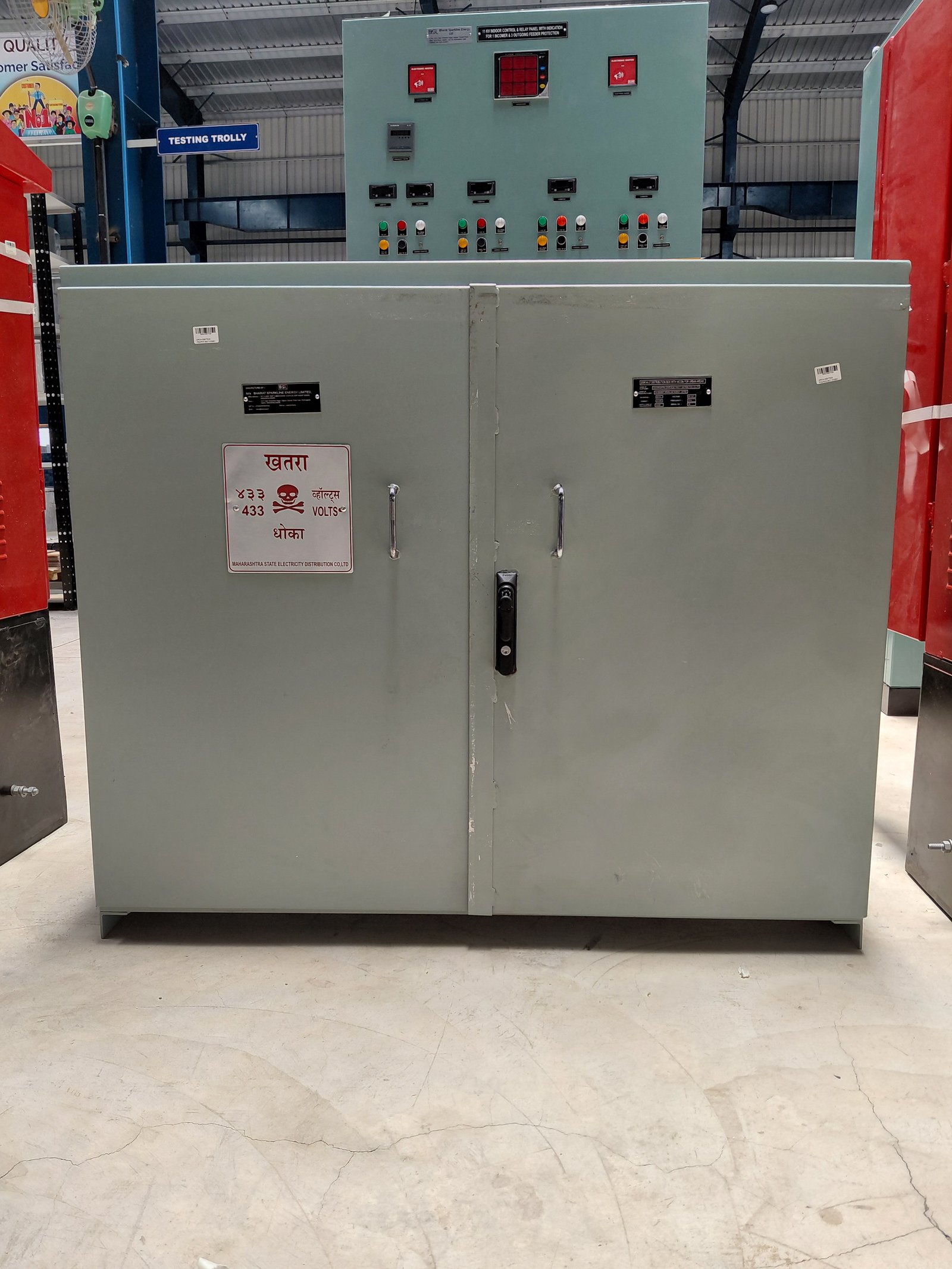

BSL Energy 63/100/200kVA Urban Distribution Box MCCB
MSEDCL Approved
Urban LT Distribution

63kVA/100kVA/200kVA Urban Distribution Box (MCCB)

"Reliable, safe and compact LT distribution solution for 200 kVA urban transformers."

Basic System Details

ParameterDetail
System Voltage433 V AC
Frequency50 Hz
NeutralSolidly grounded
Approx. Full-Load Current~270 A
Transformer Rating200 kVA
System3-Phase, 4-Wire

Technical Specifications

ParameterDetail
Full-Load Current270 A
Incoming Isolator630 A
Fuse Link Rating315 A
Outgoing Feeders3 Feeders
MCCBs Inside~9 SP units
EnclosureSMC/DMC or MS

Application

  • Used for power distribution from 200 kVA distribution transformer (DT) to consumers
  • Installed in urban areas / residential societies / commercial zones
  • Mounted near transformer (pole / plinth mounting)
  • Distributes supply through multiple outgoing feeders (3 feeders)
